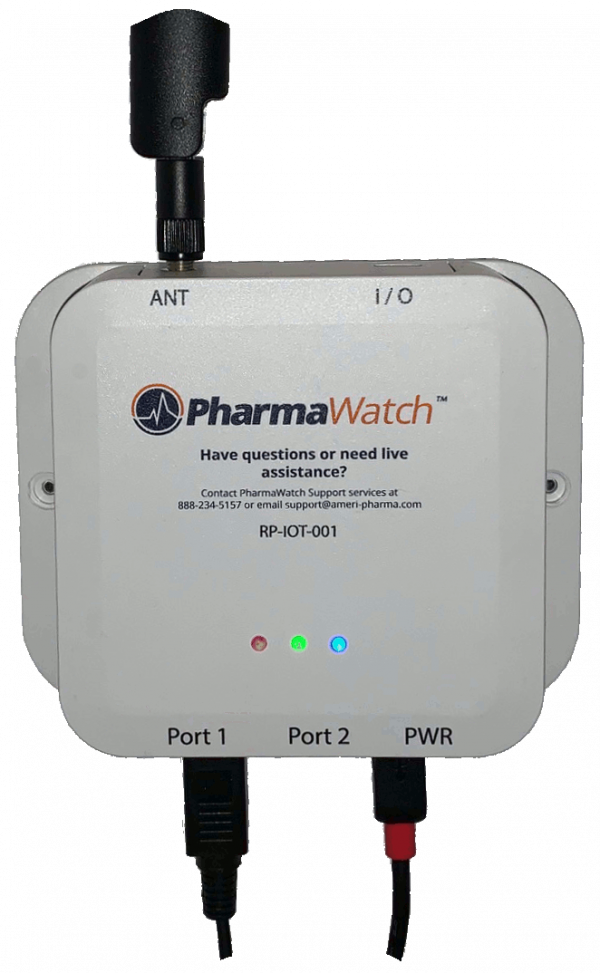

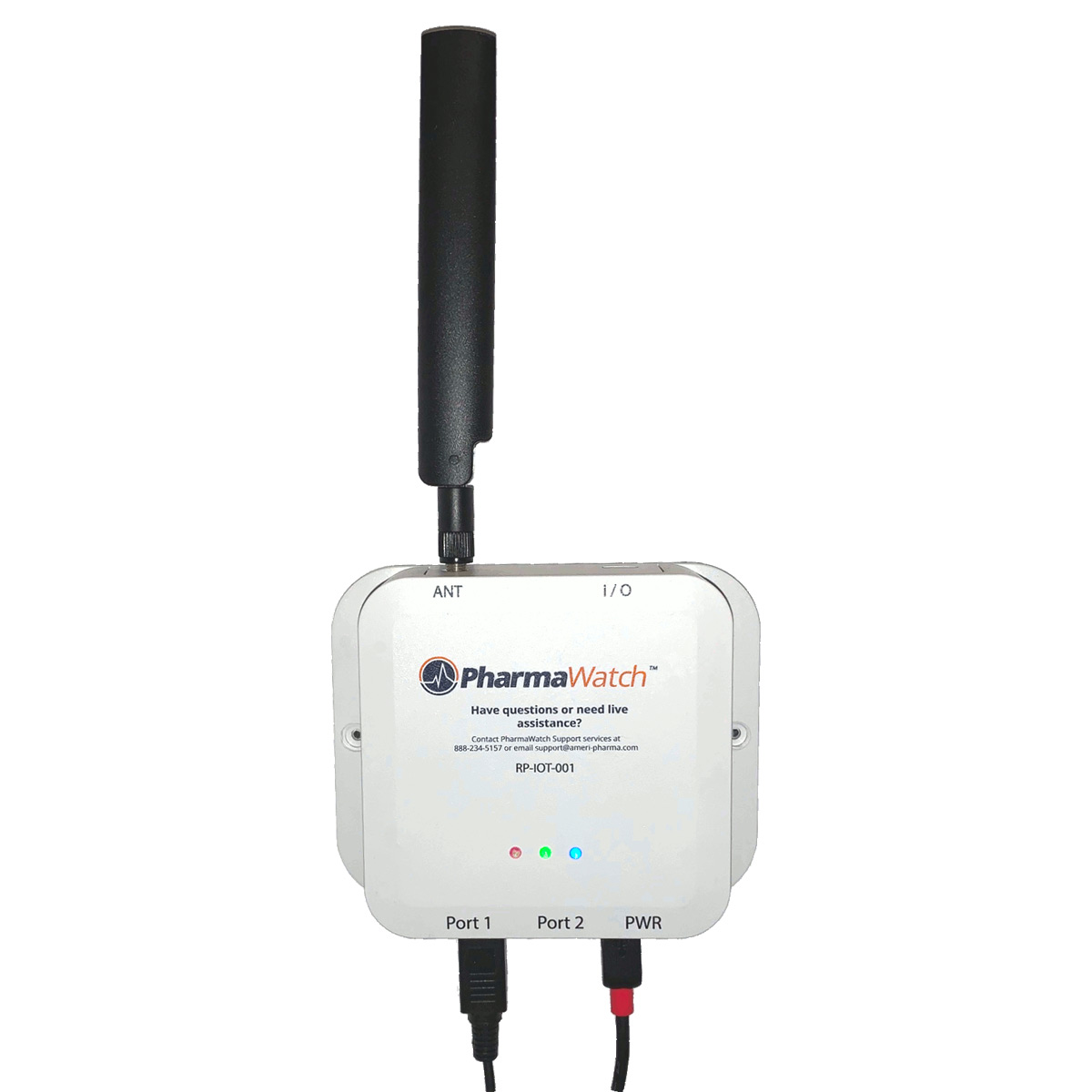

Comes with up to two external probes for remote monitoring of temperatures in refrigerators and freezers. The complete solution includes the sensor, wireless transceiver, and access to the PharmaWatch portal.
PharmaWatch wireless technology is engineered and designed to monitor critical healthcare environments where sensitive biologics, tissues, vaccines, medications and other pharmaceuticals are stored. Direct to cloud communication via LTE Cat M1 cellular completely bypasses clients WiFi network and allows for more reliable and secure monitoring. Additionally, sensors will continue monitoring in the event of a power outage, WiFi network failure and during inventory transportation or in mobile clinics.
The PharmaWatch Web Portal enables users to access (24/7) real-time and historical data, easily print audit-ready compliance reports, and receive alert notifications regarding temperature conditions via text, call or email. It alleviates the difficulties inherent in manually monitoring multiple healthcare environments in multiple locations while automatically maintaining complete regulatory compliance.
The patented Virtual Temperature Buffering™ (VTB™) algorithm can mathematically identify the specific temperature of vaccines in any size container with more accuracy and convenience than traditional buffering methods, such as glycol.
Tech Specs
- Data Storage – At least 21 days of sensor data at sampling rate of once every 5 minutes.
- Data Visualization & Reporting – PharmaWatch Web Portal
- Alerting System – SMS & Email, Phone Call
- Power Supply – AC powered (Type B USB) and rechargeable battery backup with a 3.6V Lithium battery – Expected life 14 days on battery at 25 ºC, 7 days at 10 ºC
- Operating Conditions – Operating Temperature Range: AC supply: -10ºC to +60ºC Battery: 0ºC to +60ºC
- Temperature Probe – Range: -30ºC to +50ºC Resolution: 0.1ºC Accuracy: +0.5ºC (-20ºC to 10ºC) or +0.7ºC (-30ºC to 50ºC)
- Physical Dimensions- 3.875″L x 3.875″W x 1.375”H (98mm x 98mm x 35mm)
- Weight – 7.6 oz (215 g)
- Regulatory – FCC Compliant
Comes with one external Resistance Temperature Detector probes for remote monitoring of low temperatures in deep freezers, cryogenic containers and various applications with temperatures ranging from -200ºC to 0ºC. The complete solution includes the sensor, wireless transceiver, and access to the PharmaWatch portal.
PharmaWatch wireless technology is engineered and designed to monitor critical healthcare environments where sensitive biologics, tissues and vaccines are stored. Direct to cloud communication via LTE Cat M1 cellular completely bypasses clients WiFi network and allows for more reliable and secure monitoring. Additionally, sensors will continue monitoring in the event of a power outage, WiFi network failure and during inventory transportation or in mobile clinics.
The PharmaWatch Web Portal enables users to access (24/7) real-time and historical data, easily print audit-ready compliance reports, and receive alert notifications regarding temperature conditions via text, call or email. It alleviates the difficulties inherent in manually monitoring multiple healthcare environments in multiple locations while automatically maintaining complete regulatory compliance.
The patented Virtual Temperature Buffering™ (VTB™) algorithm can mathematically identify the specific temperature of vaccines in any size container with more accuracy and convenience than traditional buffering methods, such as glycol.
Tech Specs
- Data Storage – At least 21 days of sensor data at sampling rate of once every 5 minutes.
- Data Visualization & Reporting – PharmaWatch Web Portal
- Alerting System – SMS and Email, Phone Call
- Power Supply – AC powered (Type B USB) and rechargeable battery back-up with a 3.6V Lithium battery – Expected life 14 days on battery at 25 ºC, 7 days at 10 ºC
- Operating Conditions – Operating Temperature Range: AC supply: -10ºC to +60ºC Battery: 0ºC to +60ºC
- Temperature Probe – Range: -200ºC to +0ºC Resolution: 0.1ºC TBD Accuracy: +0.5ºC (-20ºC to 10ºC) or +0.7ºC (-30ºC to 50ºC)
- Physical Dimensions – 3.875″L x 3.875″W x 1.375”H (98mm x 98mm x 35mm)
- Weight – 7.6 oz (215 g)
- Regulatory – FCC Compliant
- RTD Inputs Compatible with Pt-100 RTD, DIN/IEC751 (alpha = 0.00385). Temperature range: from -200°C to +0°C Resolution : 0.1°C TBD Accuracy: ±0.2°C typical (system is individually calibrated by software for best accuracy).
Comes with up to two external probes for remote monitoring of temperatures or humidity in rooms. If chosen, there is a built-in calibrated digital temperature and Humidity sensor with long-term stability. The complete solution includes the sensor, wireless transceiver, and access to the PharmaWatch portal.
PharmaWatch wireless technology is engineered and designed to monitor rooms where sensitive biologics, tissues, vaccines, medications and other pharmaceuticals are stored. Direct to cloud communication via LTE Cat M1 cellular completely bypasses clients WiFi network and allows for more reliable and secure monitoring. Additionally, sensors will continue monitoring in the event of a power outage, WiFi network failure and during inventory transportation or in mobile clinics.
The PharmaWatch Web Portal enables users to access (24/7) real-time and historical data, easily print audit-ready compliance reports, and receive alert notifications regarding temperature or humidity conditions via text, call or email. It alleviates the difficulties inherent in manually monitoring multiple healthcare environments in multiple locations while automatically maintaining complete regulatory compliance.
The patented Virtual Temperature Buffering™ (VTB™) algorithm can mathematically identify the specific temperature of vaccines in any size container with more accuracy and convenience than traditional buffering methods, such as glycol.
Tech Specs
- Data Storage – At least 21 days of sensor data at sampling rate of once every 5 minutes.
- Data Visualization & Reporting – PharmaWatch Web Portal
- Alerting – System SMS and Email, Phone Call.
- Power Supply – AC powered (Type B USB) and rechargeable battery back-up with a 3.6V Lithium battery – Expected life 14 days on battery at 25 ºC, 7 days at 10 ºC
- Operating Conditions – Operating Temperature Range: AC supply: -10ºC to +60ºC Battery: 0ºC to +60ºC
- Ambient Humidity Probe – Range: 0 to 100 RH Resolution: 0.03% RH Accuracy: +3.0% RH Temperature Probe Range: -30ºC to +60ºC Resolution: 0.1ºC Accuracy: +0.45ºC
- Physical Dimensions – 3.875″L x 3.875″W x 1.375”H (98mm x 98mm x 35mm)
- Weight – 7.6 oz (215 g)
- Regulatory – FCC COMPLIANT
